441 Series: Rotary Seal
The 441 Series Rotary Seal is a popular seal used in low-to-moderate speed applications that require maximum reliability and long service life.
441 Series

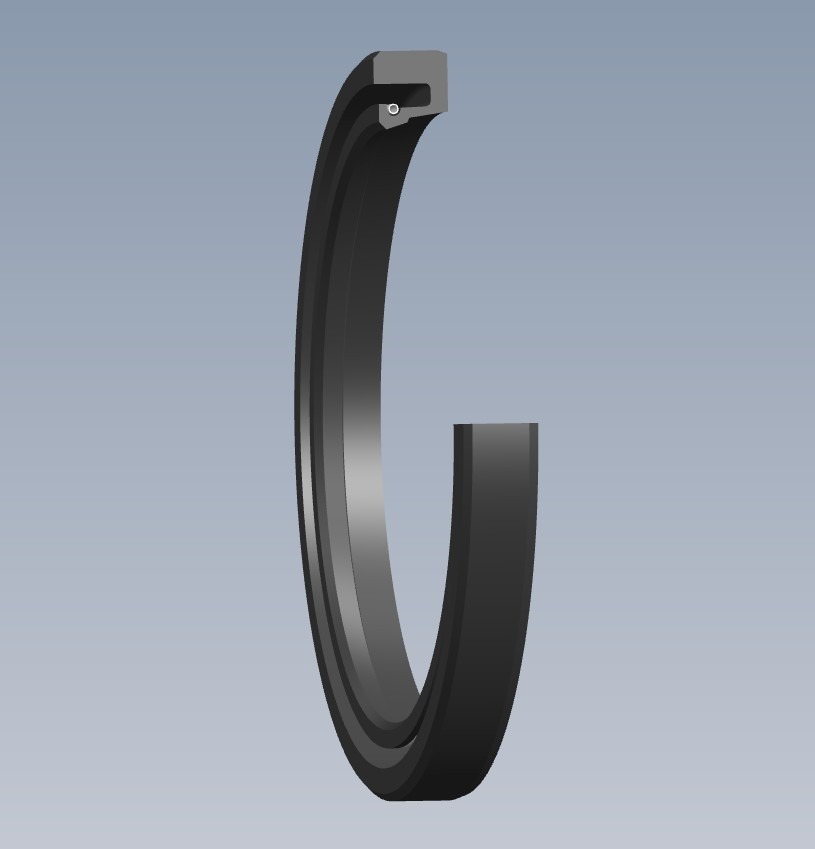

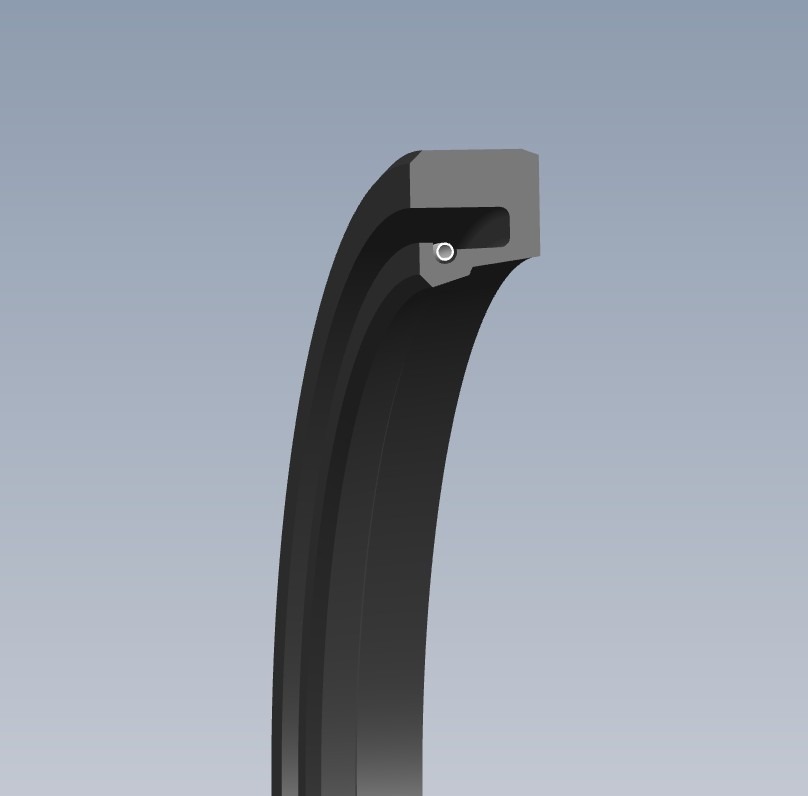

The 441 Series Rotary Seal is a popular seal used in low to moderate speed applications that require maximum reliability and long service life. The unique encapsulated spring ensures that the spring remains in place during a blind installation. The main body is strong yet flexible for ease of installation and stability within the groove. The lip force is optimized for the full range of sizes by varying design of the internal spring, allowing low friction and minimal wear.
Installation Drawing
Material Ranges
The 441 Series Rotary Seal features high-grade polyurethane.
| Polyurethane / garter spring | MP94 |
Temperature Ranges
MP85 Seal Only
°C
°F
hydraulic oil
-30…+100
hydraulic oil
-22…+212
water oil emulsions (HFA
+5…+60
water oil emulsions (HFA
+41…+140
water-glycol fluids (HFC)
-30…+60
water-glycol fluids (HFC)
-22…+140
polyol esters (HFD)
-30…+80
polyol esters (HFD)
-22…+176
water
0…+50
water
+41…+212
Speed
10 m/s (32 ft/sec)
Speed
10 m/s (32 ft/sec)
Pressure
0.05 MPa(7.25 psi)
Pressure
0.05 MPa(7.25 psi)
Designed for flexibility across materials, sizes, and performance requirements. Standard and custom diameters ensure optimal integration into your system.
Engineered Performance
Built to Perform
The 441 Series Rotary Seal is used in industrial rotary applications that require minimum wear and long service life
Benefits
- Available split design
- Fully encapsulated spring option
- Premium wear resistance
- Low friction
- Recommended for low-to-moderate speed applications
- Easy to install
- Large diameter applications
Applications
- Wind Energy
- Large Diameter Bearing Manufacturers
