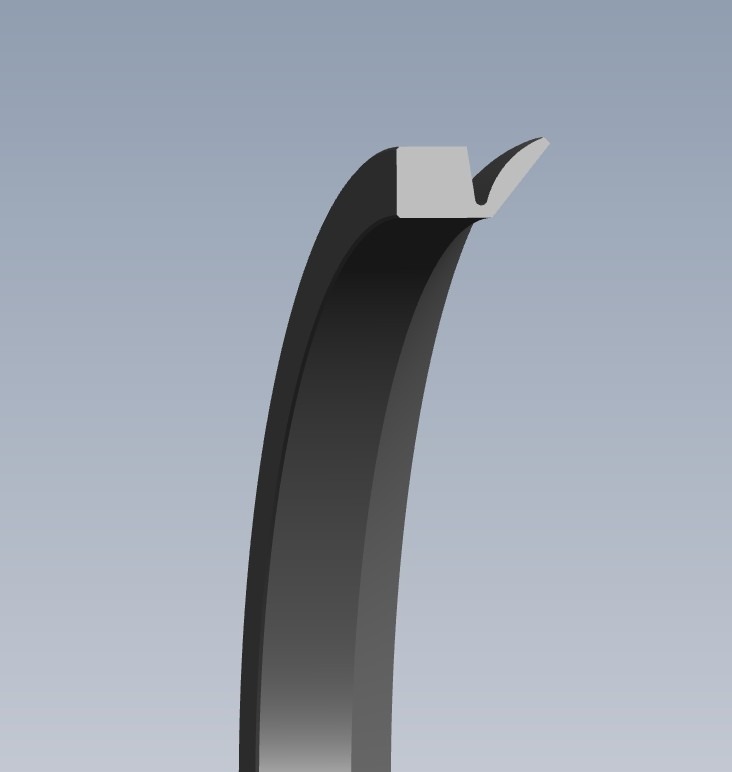

421 Series: V-Ring – HD
The 421 Series Rotary Seal is designed to protect the internal bearing and primary seals from water splash and heavy concentrations of debris.
421 Series
The 421 Series Rotary Seal is a robust rotary internal bearing and primary seals from water splash and heavy concentrations of debris. This is commonly used on work rolls and roll neck bearings in steel and aluminum mills. The design of the seal lip is much more robust than traditional rotary face seals providing maximum performance in harsh conditions.
Installation Drawing
Material Ranges
The 421 Series Mill-Duty Rotary Splash Guard features high-grade NBR. Also available in HNBR for improved abrasion resistance and FPM compounds for higher temperatures.
| Nitrile NBR | MN01 |
| Hydrogenated HNBR | MN03 |
| Fluroelastomer FPM | MF01 |
Temperature Ranges
MN01
°C
°F
hydraulic oil
-30…+100
hydraulic oil
-22…+212
water oil emulsions (HFA
+5…+60
water oil emulsions (HFA
+41…+140
water-glycol fluids (HFC)
-30…+60
water-glycol fluids (HFC)
-22…+140
polyol esters (HFD)
-30…+80
polyol esters (HFD)
-22…+176
water
+5…+100
water
+41…+212
Speed
20m/s (65ft/sec)
Speed
20m/s (65ft/sec)
Pressure
0.03 MPa (4.35 psi)
Pressure
0.03 MPa (4.35 psi)
Designed for flexibility across materials, sizes, and performance requirements. Standard and custom diameters ensure optimal integration into your system.
Engineered Performance
Built to Perform
The 421 Mill-Duty Rotary Splash Guard is commonly used in mill duty applications for maximum exclusions resistance where water splash and heavy concentrations of debris are present.
Benefits
- Lip force is optimized for maximum exclusion
- Works in a wide range of temperatures
- Excellent fluid compatibility
- Exceptional abrasion resistance
- Available in diameters up to 2100mm
Applications
- Steel and Aluminum Processing
- Pulp and Paper
- Pumps and Gear Boxes
- Marine
- Wind Energy
- Bearing Manufacturers
- Oil and Gas
