413 Series: Static Seal – OD Sealing
The 413 series seal is a robust profile, designed to work in both rotary and reciprocating applications.
413 Series
The 413 series is suitable for rotary and reciprocating motion.

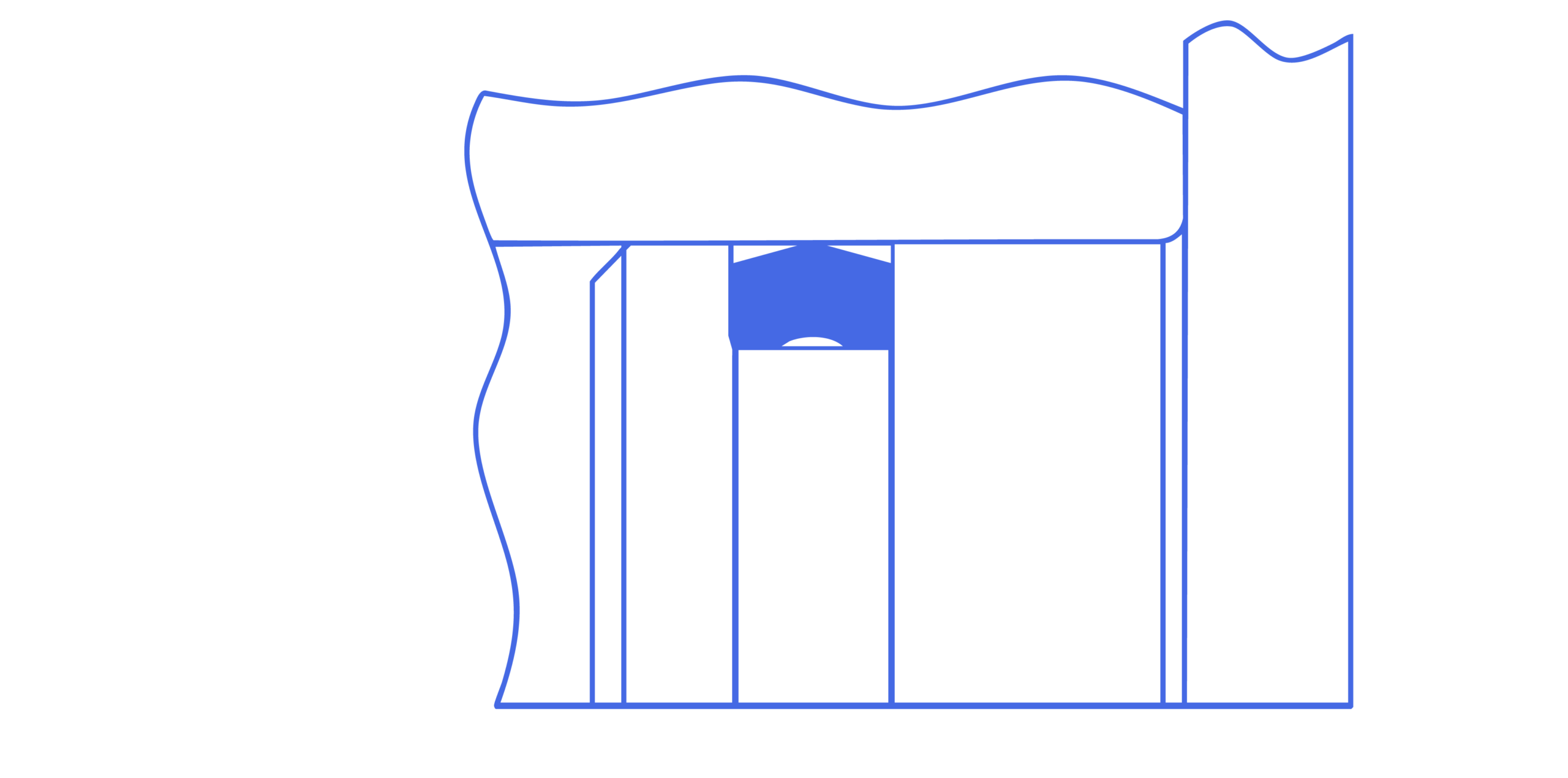

Installation Drawing
Material Ranges
The 413 series Dynamic Seal features high-grade polyurethane. Standard materials are MP03 machined H-PU, available up to 3000mm in diameter, and MP50 injection-molded TPU. To suit a variety of applications, the series is also available in NBR, H-NBR, EPDM and high temperature-resistant FPM
| Polyurethane H-PU | MP03 |
| Hydrogenated NBR | MN03 |
| Fluroelastomer FPM | MF01 |
| Nitrile NBR | MN01 |
Temperature Ranges
MP03
°C
°F
hydraulic oil
-20°C¦+115
hydraulic oil
5°C¦+240
water oil emulsions (HFA)
+5°C¦+55
water oil emulsions (HFA)
+40°C¦+130
water-glycol fluids (HFC)
-20°C¦+55
water-glycol fluids (HFC)
-5°C¦.+130
water
+5°C¦+55
water
+40°C¦+130
Speed
0.5 m/s (1.6 ft/sec)
Speed
0.5 m/s (1.6 ft/sec)
Pressure
400 bar (6000 psi)
Pressure
400 bar (6000 psi)
Designed for flexibility across materials, sizes, and performance requirements. Standard and custom diameters ensure optimal integration into your system.
Engineered Performance
Built to Perform
The 413 series is suitable for rotary and reciprocating motion.
Benefits
- Replaces standard O-rings
- Long life due to robust design
- Will not roll during installation
- Available in inch or metric sizes
- Higher seal force due to seal design
- Easy installation
- Can retrofit existing O-ring grooves
Applications
- Steel and Aluminum Processing
- Hydraulic Cylinders
- Marine
- Injection Molding Machines
- Oil and Gas
- Machine Tool
