109 Series: 109 Rod Seal - or Energizer

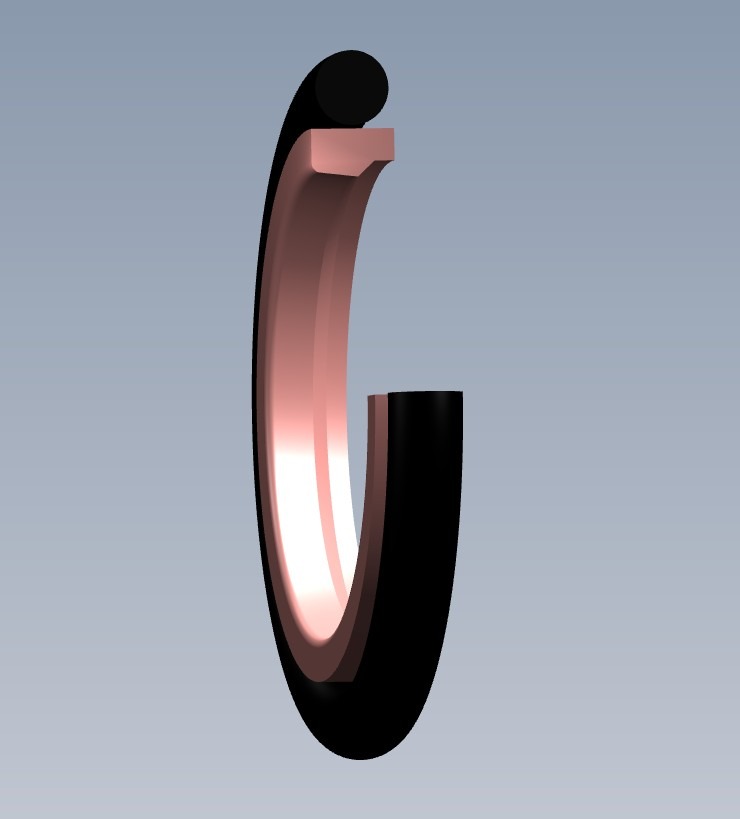

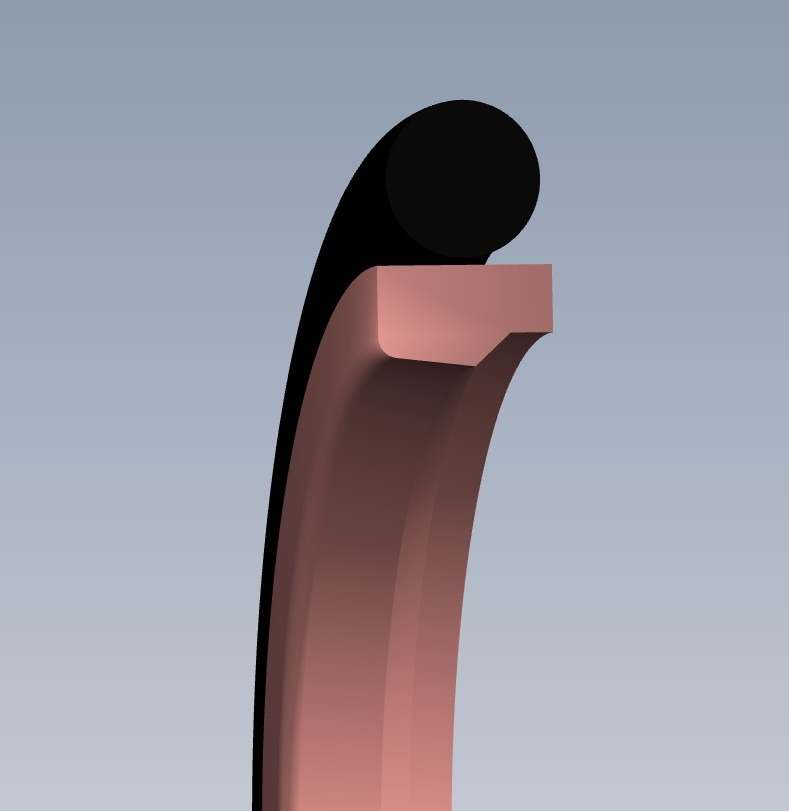

The 109 Series rod seal is a low-friction design, consisting of a PTFE-filled seal and an O-ring energizer.
109 Series
The 109 Series Rod Seal is ideal for high-pressure sealing applications, offering low-friction performance and high-speed capability. System Seals™ unique PTFE-filled compounds provide ultra-low friction and high-speed performance with minimal wear. The standard compounds are PTFE with Bronze filler, or PTFE filled with Glass-Moly. The temperature range of the seal can be increased by selecting a FPM O-ring in place of the standard NBR O-ring.

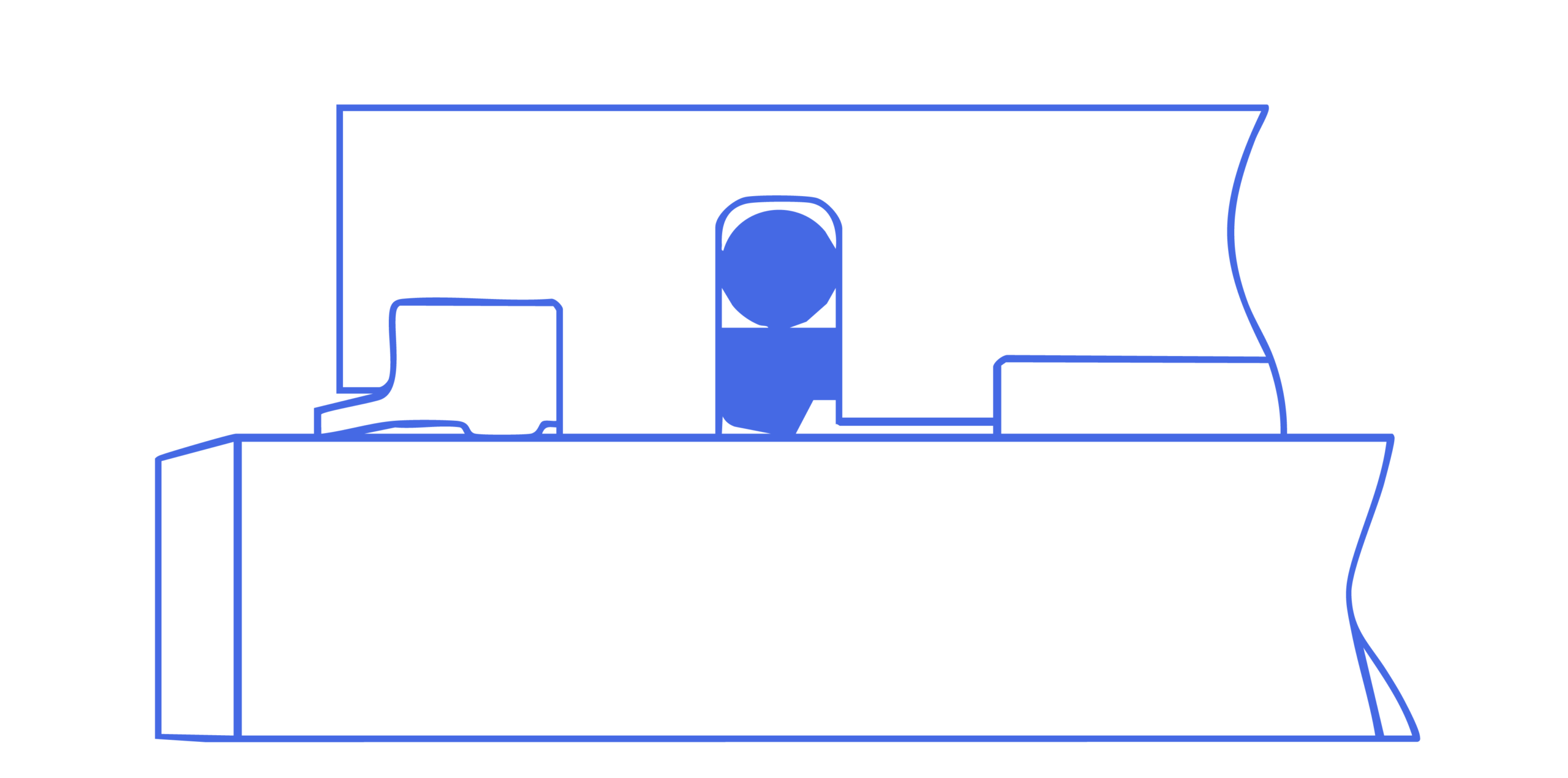

Installation Drawing
Material Ranges
The 106 Series rod seal features high-grade polyurethane. Standard materials are MP03 machined H-PU, available up to 2100mm in diameter, MP50 and MN01 injection-molded TPU. To suit a variety of applications, the series is also available in NBR, H-NBR, EPDM and high temperature-resistant FPM.
| PTFE-Bronze Compound + NBR O-ring | MT23 |
| PTFE-Bronze Compound + FPM O-ring | MT26 |
| PTFE-Glass/MoS2 compound + NBR O-Ring | MT83 |
| PTFE-Glass/MoS2 compound + FPM O-ring | MT86 |
Temperature Ranges
MT23
MT83
°C
°F
Hydraulic oil
-30° + 100°
Hydraulic oil
-22° + 212°
Speed
0.5 m/s (1.6 ft/sec)
Speed
Pressure
400 bar (6000 psi)
Pressure
Hydraulic oil
-30° +100°
Hydraulic oil
-22° +212°
Water oil emulsions (HFA)
5° + 60°
Water oil emulsions (HFA)
+40° +140°
Water glycol fluids (HFC)
-30° + 60°
Water glycol fluids (HFC)
-22° + 140°
Polyol esters (HFD)
----
Polyol esters (HFD)
-----
Water
+5° + 100°
Water
+40° + 212°
CAD Files
Engineered Performance
Built to Perform
Engineered for demanding hydraulic environments, this sealing solution delivers reliable performance under high pressure, wide temperature ranges, and aggressive media—helping extend service life and reduce downtime.
Benefits
- Low friction
- High-speed applications
- High-temperature resistance
- Low wear
- Extrusion resistant
- Compatible with a wide range of media
- Available in diameters up to 2100mm
Applications
- Injection Molding
- Mobile Hydraulics
- Hydraulic Presses
- Used as a buffer seal in a Zero-Leak Technology System
