847 Series: Guide Band – Split 45° – TC

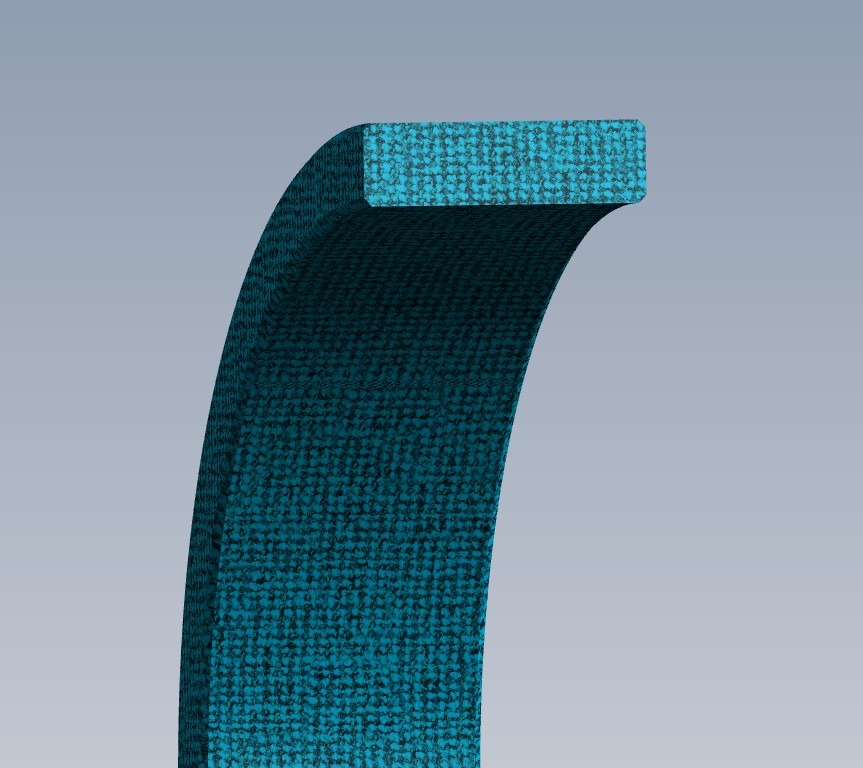

The 847 Rod Series is a low-friction guide band made from MTC1, a high-compressive strength composite.
847 Series
The 847 Series is a low-friction guide band made from MTC1, a high-compressive strength composite. This guide band is substantially stronger than nylon-based materials and offers considerably lower water absorption. This new composite provides more accurate piston and rod guidance inside the cylinder under widely varying load conditions. Reduced bushing deformation allows the seals and wipers to perform at maximum efficiency, while minimizing the risk of scoring and abrasion.
Installation Drawing
Material Ranges
The 847 Rod Series Guide Band is made from MTC1, a thermoset polyester resin reinforced with a synthetic fabric. Machined from MTC1 composite, compressive strength of 50,000 psi. Dimensionally stable in water-based fluids, low friction and easy to install.
| Polyester Resin Fabric | MTC1 |
Temperature Ranges
MTC1/MTC20
°C
°F
hydraulic oil
-40…+120
hydraulic oil
-40…+248
water oil emulsions (HFA)
+5…+60
water oil emulsions (HFA)
+41…+140
water glycol fluids (HFC)
-40…+60
water glycol fluids (HFC)
-40…+140
polyol esters (HFD)
-40…+100
polyol esters (HFD)
-40…+140
water
+5…+60
water
+41…+140
Speed
1 m/s (3.3 ft/sec)
Speed
Load
<50 n/mm (<7250 psi)
Load
Designed for flexibility across materials, sizes, and performance requirements. Standard and custom diameters ensure optimal integration into your system.
Engineered Performance
Built to Perform
The 847 Rod Series Guide Band is the ideal solutions where high side loads and deflections are present
Benefits
- Easily manufactured to accommodate over sized conditions during rework
- Very accurate and precise guidance of the cylinder components
- Withstands very high side loads during operations
- Maximizes efficiency of the dynamic seals
- Wide temperature range
Applications
- Leg jack cylinders
- Base lift cylinders
- Tip jack cylinders
- Face ram cylinders
- Tailgate tensioning cylinders
