273 Series: Piston Seal – Step Cut – HD Energizer
The 273 Series Heavy-Duty Step-Cut Piston Seal is an ideal upgrade from traditional cast iron piston rings..
271 Series
The 271 Accumulator Piston Series is ideal for high-pressure sealing applications, offering low-friction performance and double-acting operation.

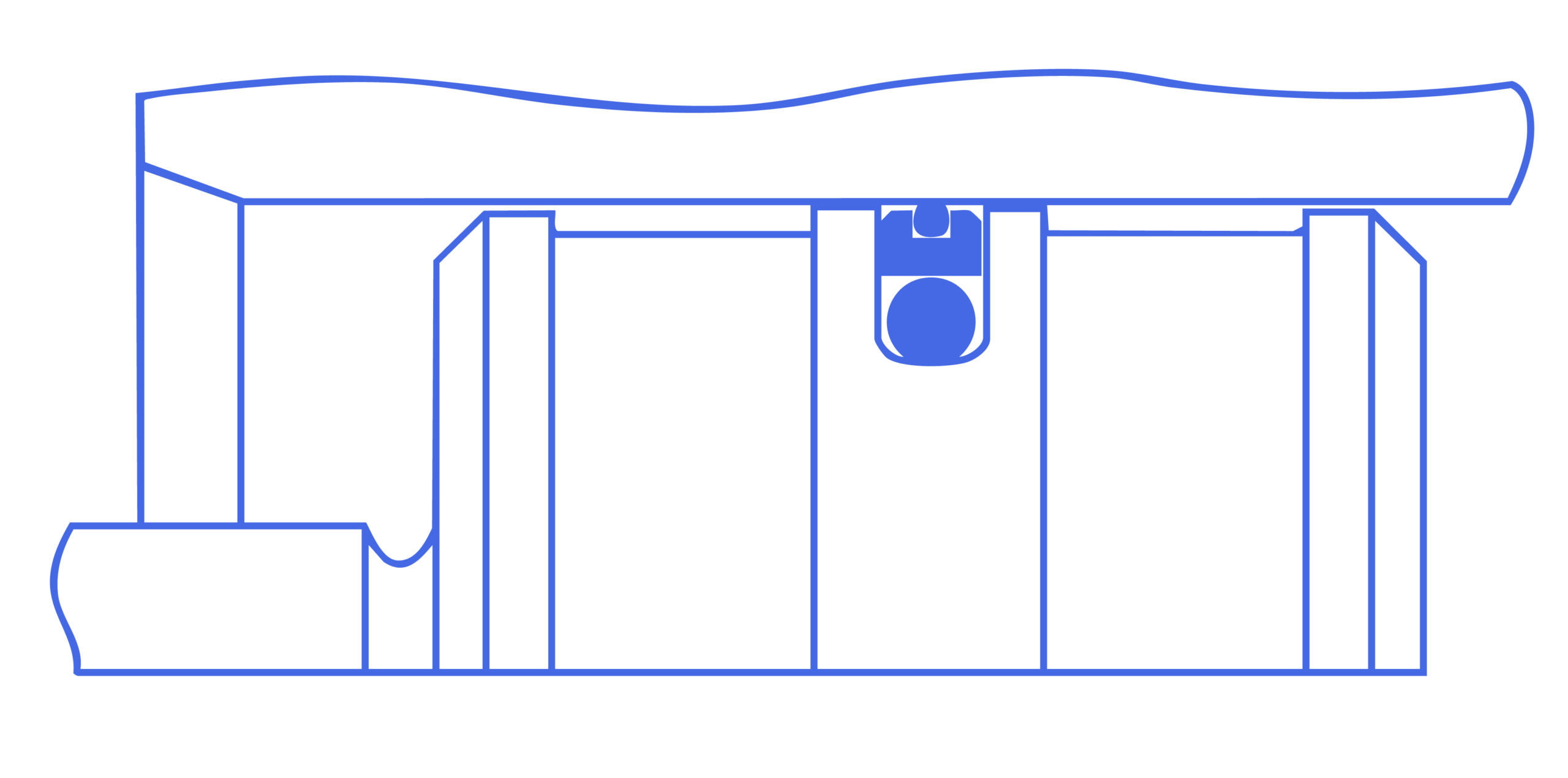

Installation Drawing
Material Ranges
System Seals™ custom blended PTFE-filled compounds provide ultra-low friction and high-speed performance with minimal wear. The standard compounds are PTFE with Bronze filler, or PTFE filled with Glass-Moly. The temperature range of the seal can be increased by selecting an FPM energizer in place of the standard NBR energizer.
| PTFE-Bronze compound + NBR O-ring | MT23 |
| PTFE-Bronze compound + FPM O-ring | MT26 |
| PTFE-Glass/MoS2 compound + NBR O-ring | MT83 |
| PTFE-Glass/MoS2 compound + FPM O-ring | MT86 |
Temperature Ranges
MT23
MT83
°C
°F
hydraulic oil
-30…+100
hydraulic oil
-22…+212
Speed
5 m/s (16.5 ft/sec)
Speed
5 m/s (16.5 ft/sec)
Pressure
400 bar (6000 psi)
Pressure
400 bar (6000 psi)
hydraulic oil
-30…+100
hydraulic oil
-22…+212
water oil emulsions (HFA)
+5…+60
water oil emulsions (HFA)
+40…+140
water-glycol fluids (HFC)
-30…+60
water-glycol fluids (HFC)
-22…+140
water
-5…+100
water
+40…+212
Speed
5 m/s (16.5 ft/sec)
Speed
5 m/s (16.5 ft/sec)
Pressure
400 bar (6000 psi)
Pressure
400 bar (6000 psi)
Designed for flexibility across materials, sizes, and performance requirements. Standard and custom diameters ensure optimal integration into your system.
Engineered Performance
Built to Perform
The 273 Series features Zero Leak Technology. The highly rigid materials will not deform or shear. Highly wear resistant
Benefits
- Low friction
- Double-acting applications
- High-temperature resistance
- Low wear
- Compatible with a wide range of media
- Extrusion resistant
- Available in diameters up to 2100mm
Applications
- Rolling Mills
- Injection Molding Machines
- Hydraulic Presses
- Agricultural Hydraulics
- Mobile Hydraulics
