254 Series: Piston Seal – Compression – AE Ring
The 254 Series is one of the most robust four-piece piston seals available on the market.
254 Series

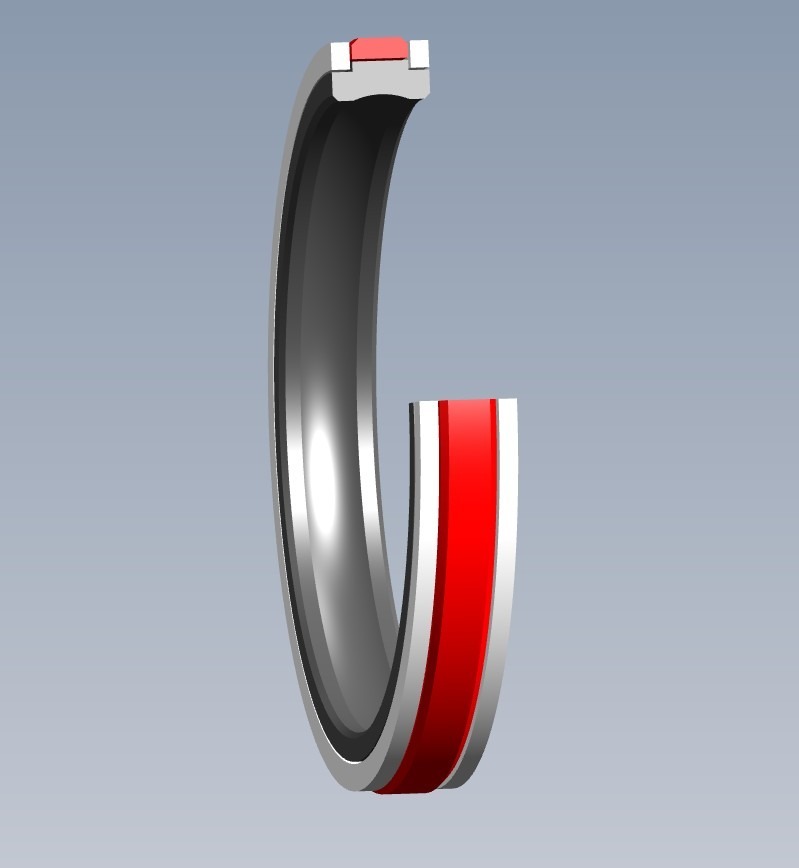

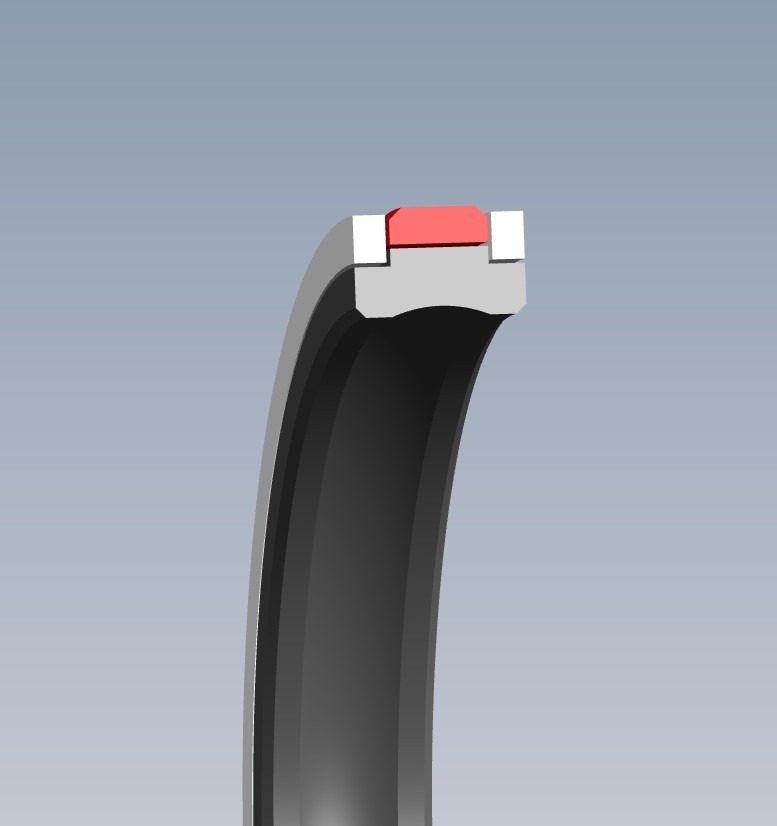

The 254 Series is one of the most robust four-piece piston seals available on the market. It consists of a profiled energizer, a PTFE-filled seal element and two active anti-extrusion backup rings. It is designed for double-acting cylinders in heavy-duty applications subject to severe pressure spikes coupled with high running clearance.

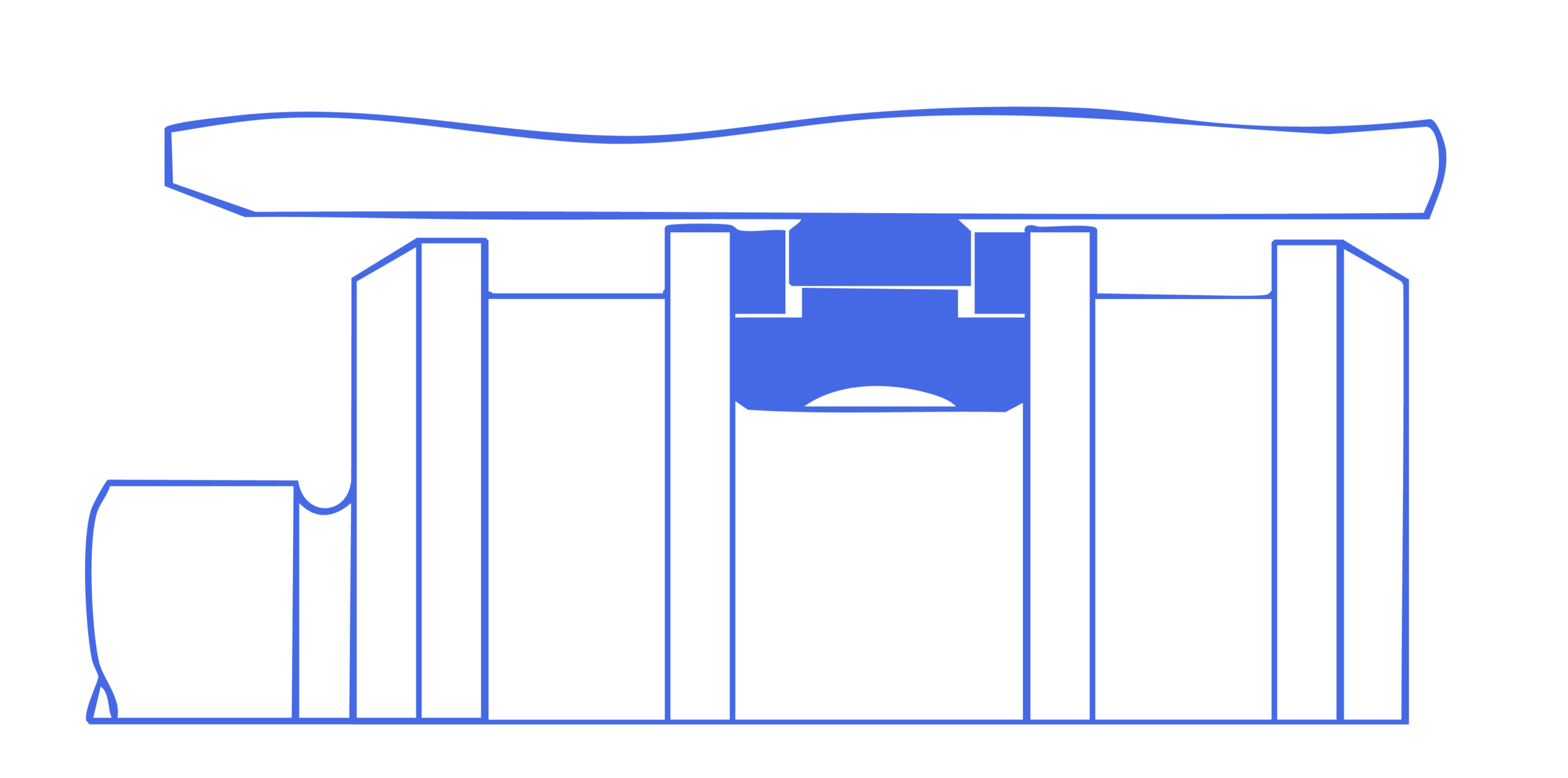

Installation Drawing
Material Ranges
The 254 Series piston seal features a robust NBR elastomer, a seal cap in low-friction PTFE-filled and two backup rings in high-strength thermoplastic
| PTFE-Bronze compound / NBR / POM | MT24 |
Temperature Ranges
MT24
°C
°F
hydraulic oil
-30…+100
hydraulic oil
-22…+212
Speed
1.5 m/s (5 ft/sec)
Speed
1.5 m/s (5 ft/sec)
Pressure
500 bar (7250 psi)
Pressure
500 bar (7250 psi)
CAD Files
Engineered Performance
Built to Perform
The 254 Series, four-piece piston seal is ideal for heavy duty sealing applications where pressure spiking can occur.
Benefits
- Long service life under the harshest conditions
- Compatible with water-base fluids
- Optimized for high running clearance
- Easy installation
Applications
- Forging presses
- Extrusion presses
- Stamping presses
- Mining
- Specialty high-pressure cylinders
- Various advancing and secondary cylinders
