235 Series: Piston Seal – Compression – AE Ring
The 235 Series is designed for compact piston applications where space is restricted.
235 Series

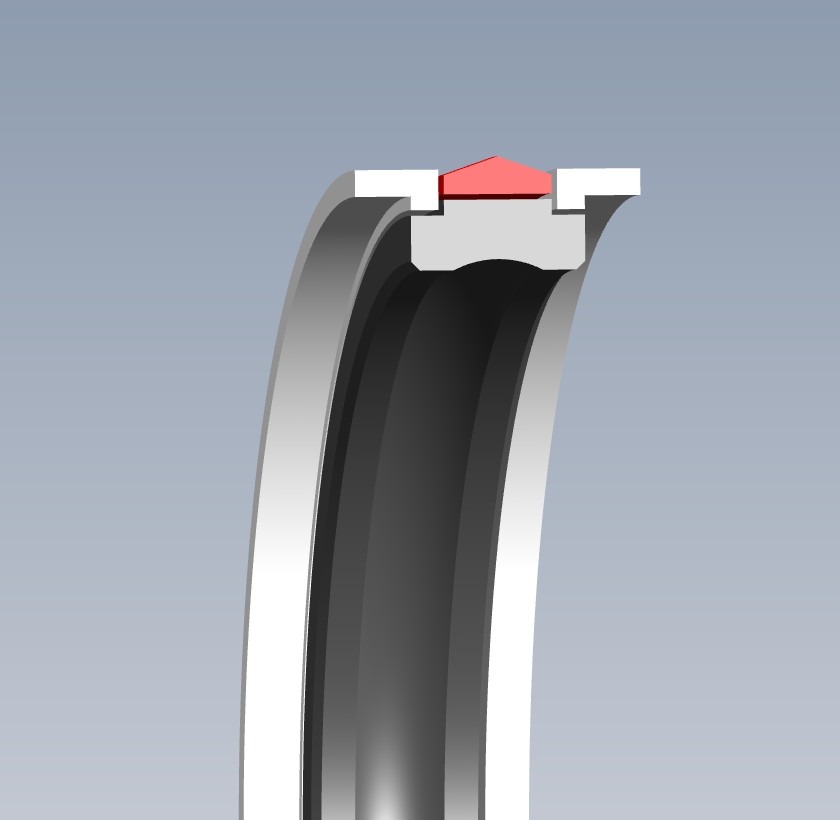

The 235 Series is designed for compact piston applications where space is restricted. It consists of a profiled energizer, a polyurethane seal element and two L-shaped anti-extrusion rings that also function as bushings. It is designed for double-acting cylinders in heavy-duty applications subject to severe pressure spikes coupled with high running clearance.

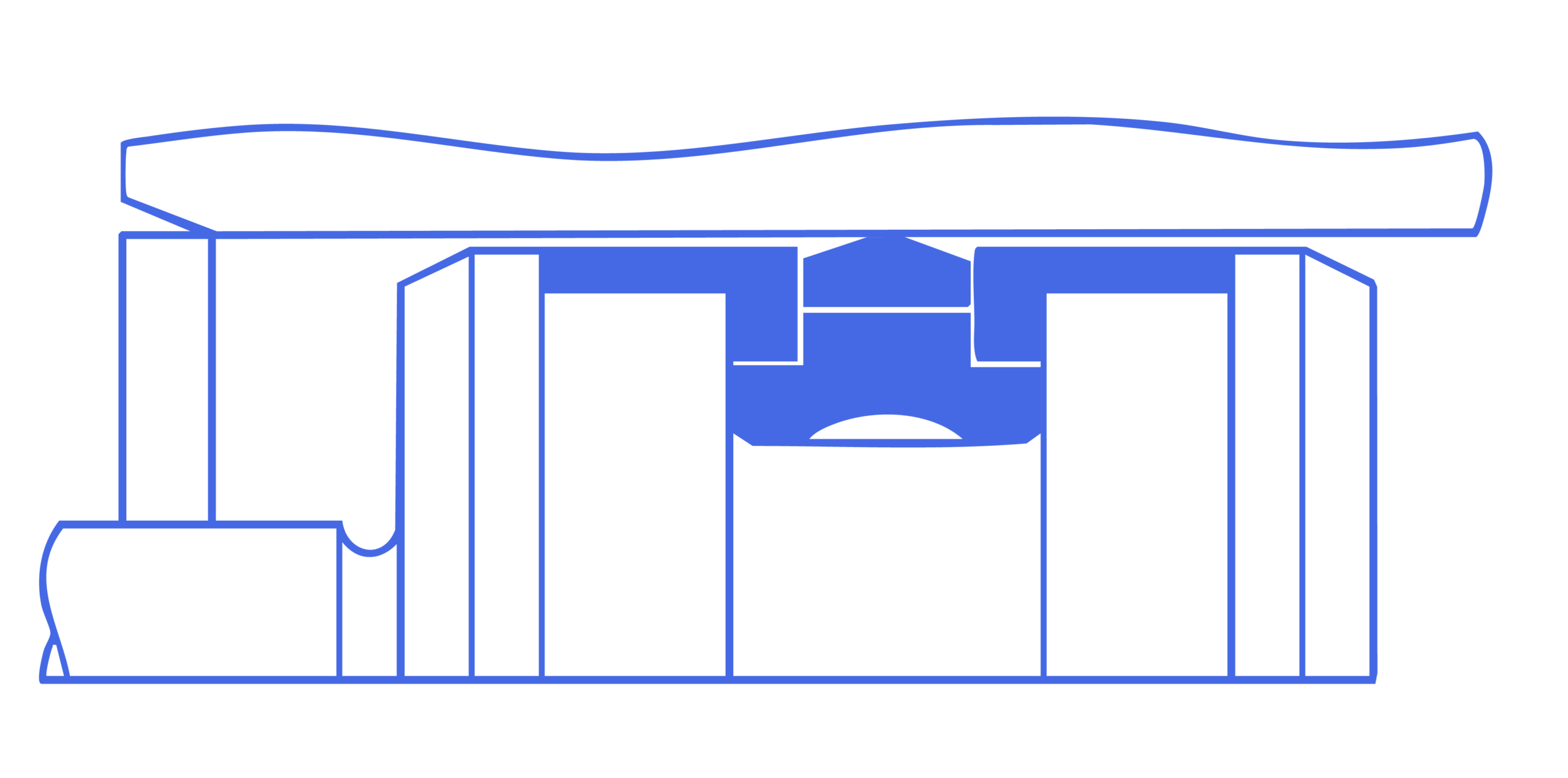

Installation Drawing
Material Ranges
The 235 Series piston seal features a robust NBR elastomer, a profile seal cap in abrasion resistant polyurethane and two L-shaped backup rings in high-strength thermoplastic.
| Polyurethane H-PU / NBR / POM | MP38 |
Temperature Ranges
MP03
°C
°F
hydraulic oil
-20…+115
hydraulic oil
-5…+240
water oil emulsions (HFA)
+5…+55
water oil emulsions (HFA)
+40…+130
water-glycol fluids (HFC)
-20…+55
water-glycol fluids (HFC)
-5….+130
water
+5…+55
water
+40…+130
Speed
0.5 m/s (1.6 ft/sec)
Speed
0.5 m/s (1.6 ft/sec)
Pressure
690 bar (10000 psi)
Pressure
690 bar (10000 psi)
CAD Files
Engineered Performance
Built to Perform

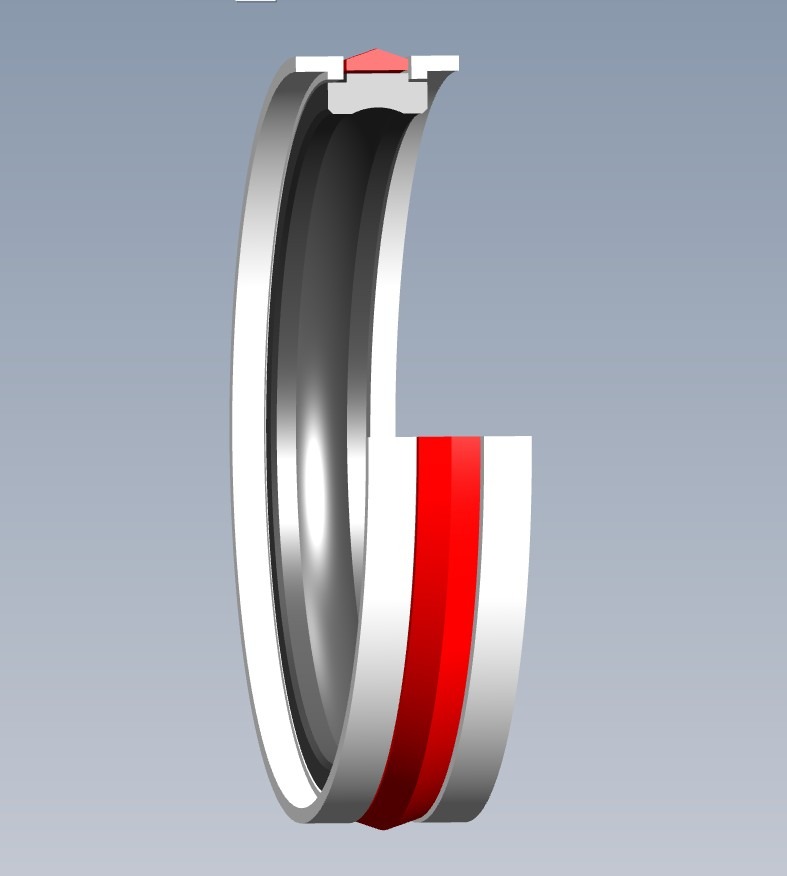

The 235 Series, four-piece piston seal is ideal in heavy duty sealing applications where space is restricted and pressure spiking can occur.
Benefits
- Long service life under the harshest conditions
- Compatible with water-base fluids (H-PU)
- Designed for space-restricted applications
- Easy installation
Applications
- Mining
- Heavy-duty clamp cylinders
- Specialty high-pressure cylinders
- Hydraulic rams
- Various advancing and secondary cylinders
