234 Series: Piston Seal – Compression – AE Ring
The 234 Series is one of the most robust four-piece piston seals available on the market.
234 Series

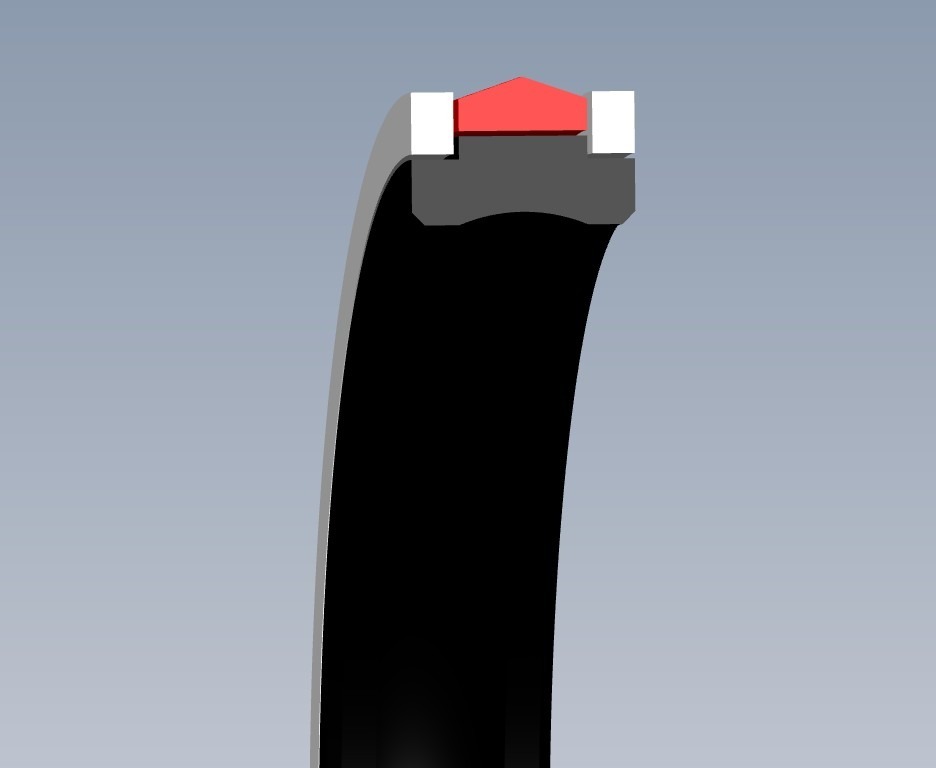

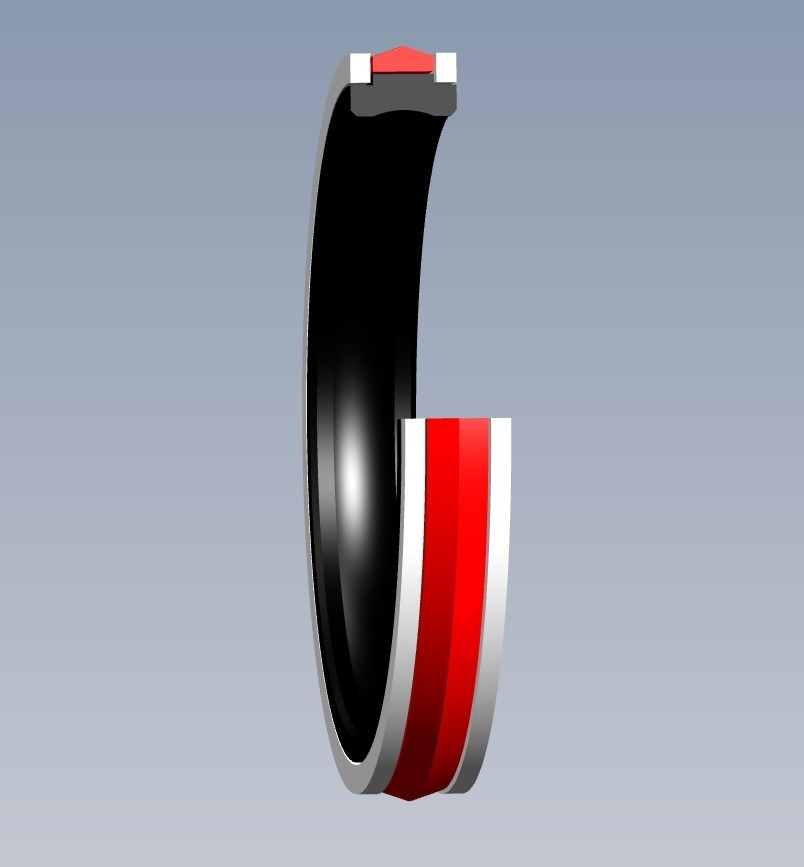

The 234 Series is one of the most robust four-piece piston seals available on the market. It consists of a profiled energizer, a polyurethane seal element and two active anti-extrusion backup rings. It is designed for double-acting cylinders in heavy-duty applications subject to severe pressure spikes coupled with high running clearance.
Installation Drawing
Material Ranges
The 234 Series piston seal features a robust NBR elastomer, a profile seal cap in abrasion resistant polyurethane and two backup rings in high-strength thermoplastic.
| Polyurethane H-PU / NBR / POM | MP38 |
Temperature Ranges
MP38
°C
°F
hydraulic oil
-20…+115
hydraulic oil
-5…+240
water oil emulsions (HFA)
+5…+55
water oil emulsions (HFA)
+40…+130
water-glycol fluids (HFC)
-20…+55
water-glycol fluids (HFC)
-5….+130
water
+5…+55
water
+40…+130
Speed
0.5 m/s (1.6 ft/sec)
Speed
0.5 m/s (1.6 ft/sec)
Pressure
1380 bar (20000 psi)
Pressure
1380 bar (20000 psi)
CAD Files
Engineered Performance
Built to Perform
The 234 Series, four-piece piston seal is ideal in heavy duty sealing applications where pressure spiking can occur.
Benefits
- Long service life under the harshest conditions
- Compatible with water-base fluids (H-PU)
- Designed for space-restricted applications
- Easy installation
Applications
- Mining
- Heavy-duty clamp cylinders
- Specialty high-pressure cylinders
- Hydraulic rams
- Various advancing and secondary cylinders
.
