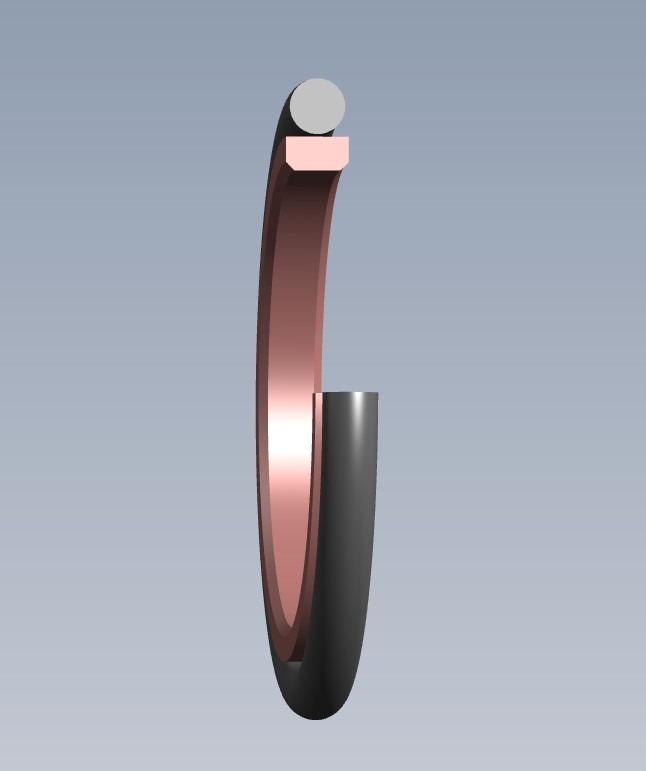

192 Series: Rod Seal
The 192 Series Rod Seal is ideal for high-pressure sealing applications, offering low-friction performance and double-acting operation.
192 Series
The 192 Series Rod Seal is ideal for high-pressure sealing applications, offering low-friction performance and double-acting operation.
Installation Drawing
Material Ranges
System Seals™ unique filled PTFE compounds provide ultra-low friction and high-speed performance with minimal wear. The standard compounds are PTFE with Bronze filler, or PTFE filled with Glass-Moly. The temperature range of the seal can be increased by selecting a FPM O-Ring in place of the standard NBR O-Ring.
| PTFE-Bronze Compound + NBR energizer | MT23 |
| PTFE-Bronze compound + FPM energizer | MT26 |
| PTFE-Glass/MoS2 compound + NBR energizer | MT83 |
| PTFE-Glass/MoS2 compound + FPM energizer | MT86 |
Temperature Ranges
MT23
MT83
°C
°F
Hydraulic oil
-30° + 100°
Hydraulic oil
-22° + 212°
Speed
5 m/s (16.5 ft/sec)
Speed
Pressure
400 bar (6000 psi)
Pressure
Hydraulic oil
-30° + 100°
Hydraulic oil
-22° + 212°
Water oil emulsions (HFA)
+5° + 60°
Water oil emulsions (HFA)
+40° + 140°
Water-glycol fluids (HFC)
-30° + 60°
Water-glycol fluids (HFC)
-20° + 140°
Water
-5° + 100°
Water
+40° + 212°
CAD Files
Engineering File Downloads
Engineered Performance
Built to Perform
Engineered for demanding hydraulic environments, this sealing solution delivers reliable performance under high pressure, wide temperature ranges, and aggressive media—helping extend service life and reduce downtime.
Benefits
- Low friction
- Short-stroke applications
- High-temperature resistance
- Low wear
- Extrusion resistant
- Compatible with a wide range of media
- Available in diameters up to 2100mm
Applications
- Injection Molding
- Mobile Hydraulics
- Hydraulic Presses
- Used as a buffer seal in a Zero-Leak Technology System
Designed for flexibility across materials, sizes, and performance requirements. Standard and custom diameters ensure optimal integration into your system.
