148 Series: Rod Seal
The 148 Series V-Packing is a popular choice in heavy duty press applications requiring maximum service life and leak-free performance.

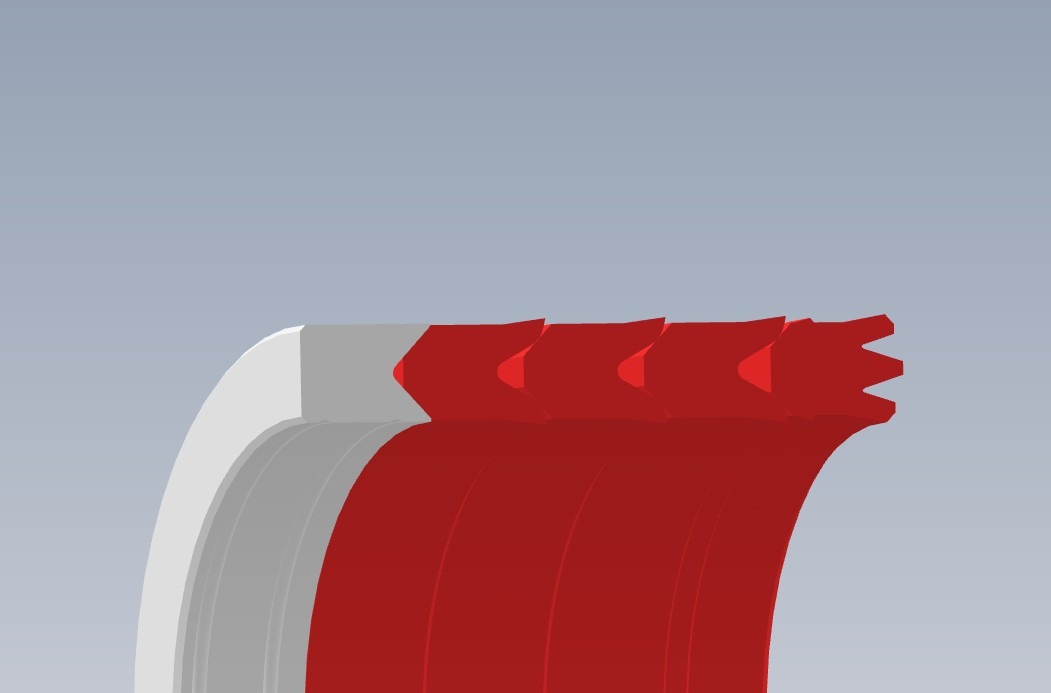

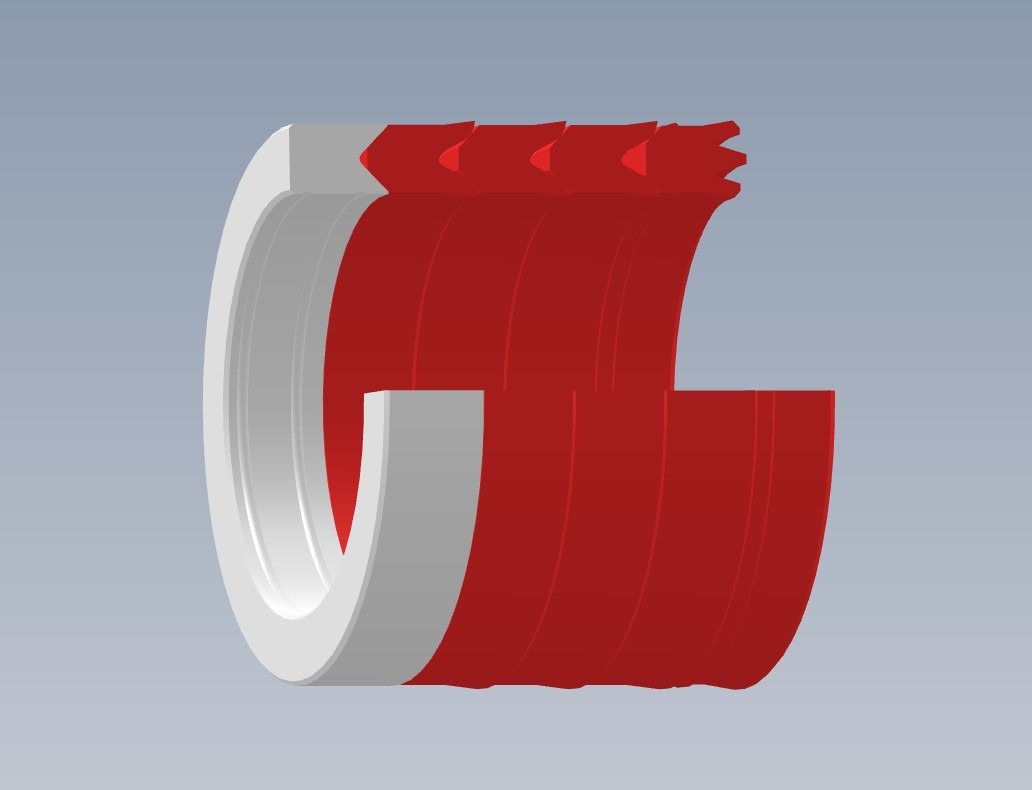

148 Series
The 148 Series V-Packing is a popular choice in heavy duty press applications requiring maximum service life and leak-free performance. The 148 Elite set is the preferred choice for older legacy presses due to its abrasion and extrusion resistance.

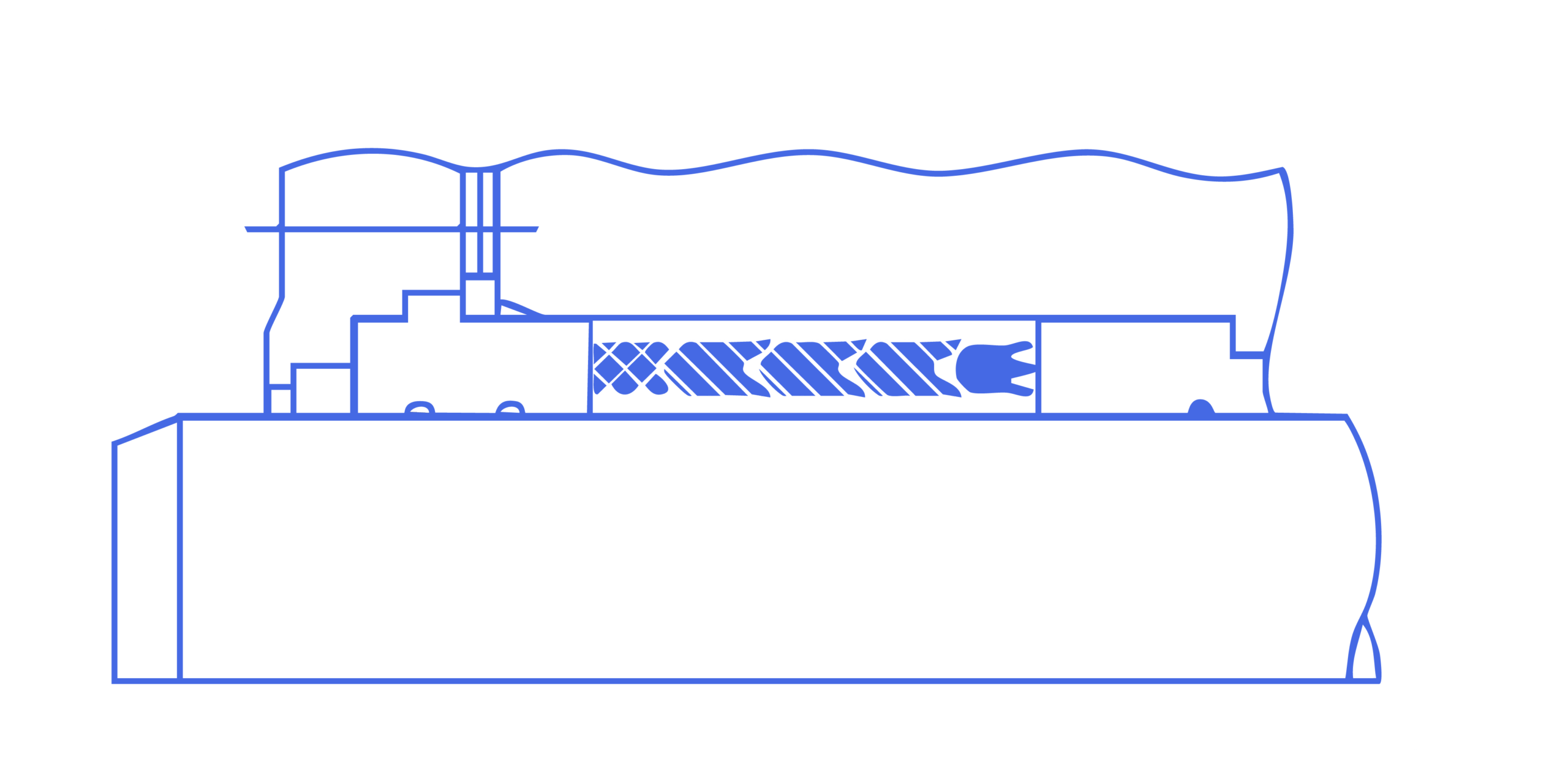

Installation Drawing
Material Ranges
Molded designs: Common construction consists of nitrile and fabric and fluoroelastomer and fabric for higher temperatures.
Machined designs: Available in abrasion-resistant polyurethane, nitrile, HNBR, EPDM and fluoroelastomer.
| NBR/Fabric | MN50 |
| HNBR/fabric | MN39 |
| NBR and PTFE Bz | MN19 |
Temperature Ranges
Designed for flexibility across materials, sizes, and performance requirements. Standard and custom diameters ensure optimal integration into your system.
Engineered Performance
Built to Perform
Engineered for demanding hydraulic environments, this sealing solution delivers reliable performance under high pressure, wide temperature ranges, and aggressive media—helping extend service life and reduce downtime.
Benefits
- Heavy-duty robust multi-lip design for maximum seal life
- Easily configured for retrofit applications
- Preferred design for rams with worn surfaces over conventional seal
- Proven design with long history of success
- The Elite male adaptor is energized for greater sealing performance
- The Elite sets offers superior abrasion and extrusion resistance
Applications
- Heavy-duty forging presses
- Stamping presses
- Extrusion presses
- Board presses
- Legacy equipment
