119 Series: Rod Seal
The 119 series rod seal is ideal for most applications requiring low friction, high temperature, and improved fluid compatibility.
119 Series
The 119 series rod seal is ideal for most applications requiring low friction, high temperature, and improved fluid compatibility.

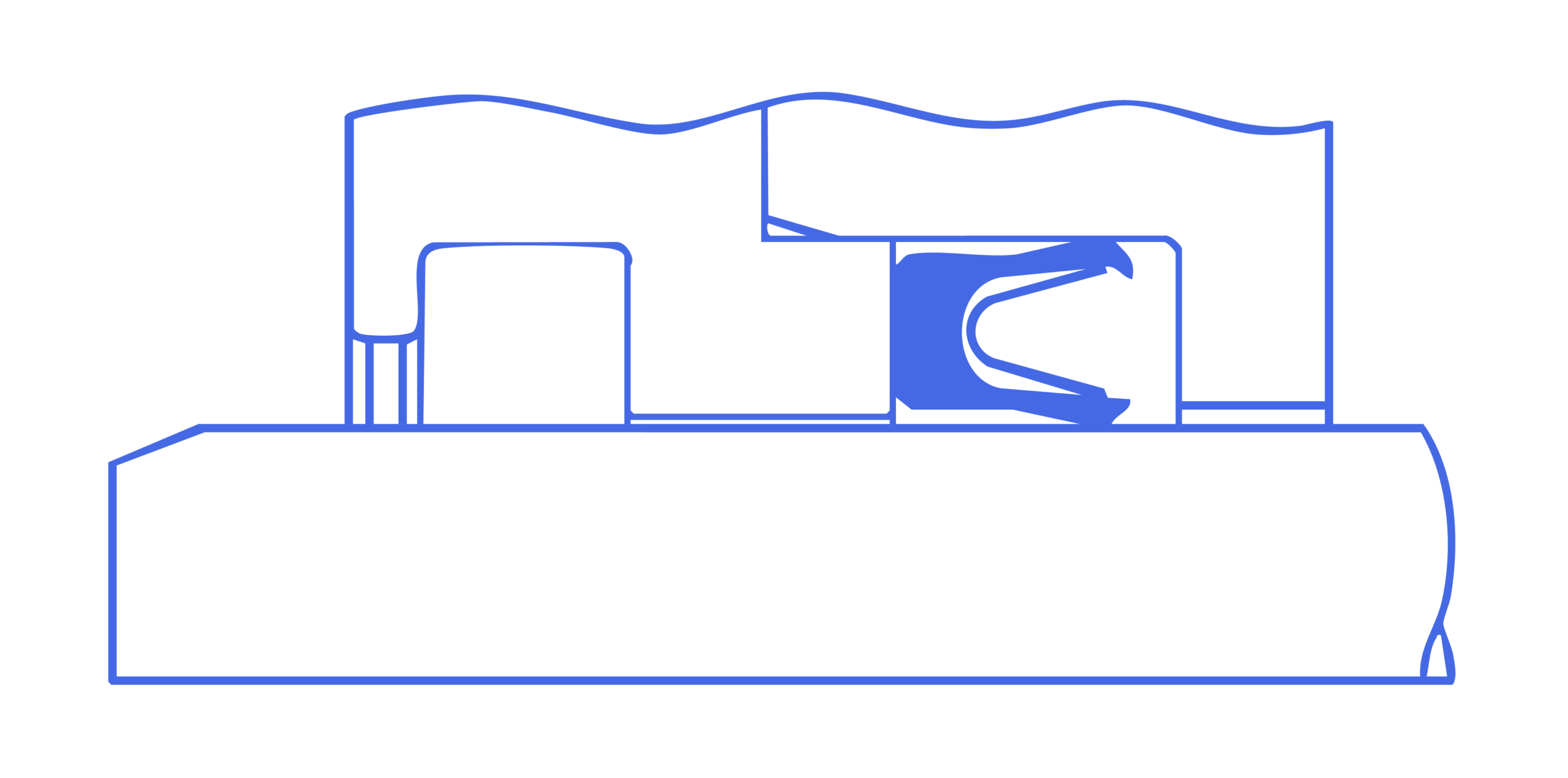

Installation Drawing
Material Ranges

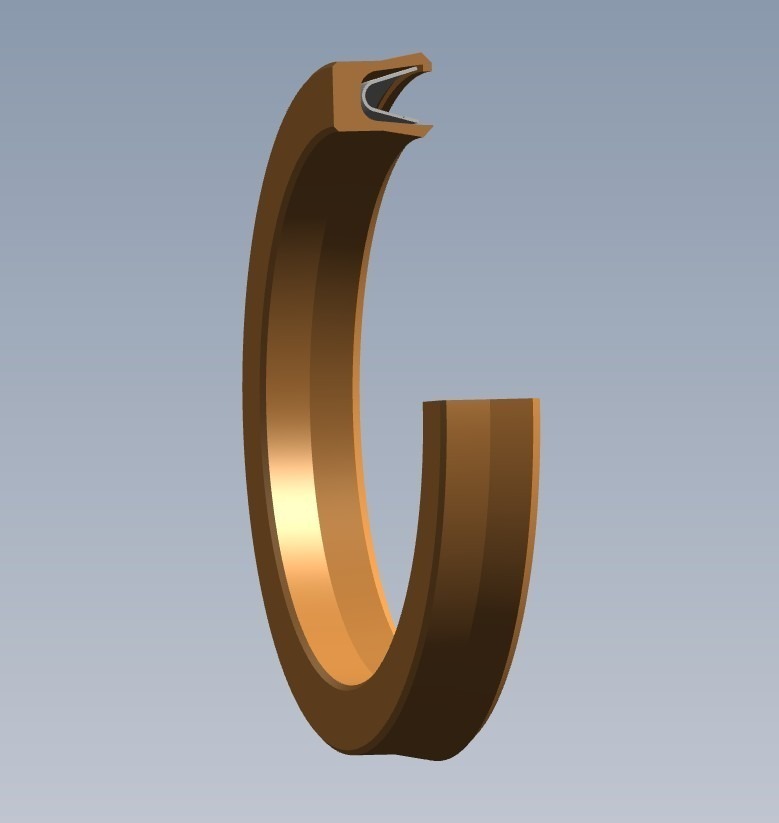

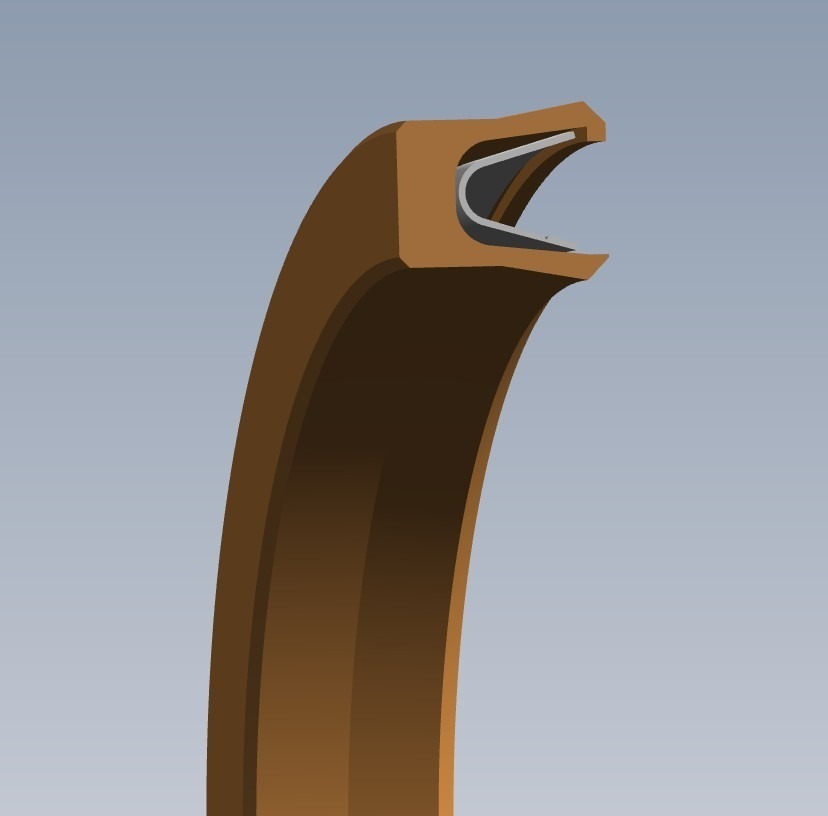

The 119 series rod seal features low friction PTFE energized with an internal spring. Standard materials are MT200 PTFE filled with Carbon/Graphite, available in standard sizes using a stainless steel spring. Also available with Elgiloy spring as an option for high heat or added chemical resistance. To suit a variety of applications, the series is also available in various filled PTFEs as well as Polyurethane and UHMW.
| PTFE/Bz + Spring | MT20 |
| PTFE/Glass Moly + Spring | MT116 |
| PTFE/Virgin + Spring | MT119 |
| PTFE/Carbon/Graphite + Spring | MT200 |
| UHMW + Spring | ML47 |
| Polyurethane + Spring | MP172 |
Temperature Ranges
Designed for flexibility across materials, sizes, and performance requirements. Standard and custom diameters ensure optimal integration into your system.
Engineered Performance
Built to Perform
Engineered for demanding hydraulic environments, this sealing solution delivers reliable performance under high pressure, wide temperature ranges, and aggressive media—helping extend service life and reduce downtime.
- Wide temperature range
- Highly extrusion resistant with the use of a backup ring
- Excellent fluid compatibility including water-based fluids and aggressive fluids
- Exceptional low friction performance
- Available in all standard sizes
- Optional spring alloys available for improved performance and compatibility
- Hydraulic and Pneumatic Cylinders
- Pressure Accumulators
- Valve Stems
- Nozzles
- High Temperature
- Aggressive Fluids
